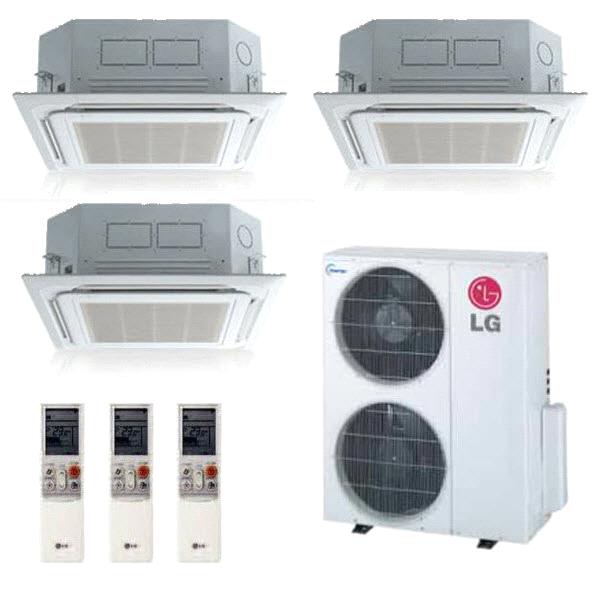

The LG Tri Zone Ceiling Cassette Heat Pump Mini Split System includes (1) LMU540HV 54,000 BTU Outdoor Condenser and (3) LMCN185HV 18,000 BTU Indoor Units. This ceiling cassette system is designed with 3 zones and a rated capacity of 54,000 BTU/hour. The system comes with a total of 3 ceiling cassette indoor units. The tri zone system provides both heating and cooling to your home or business. Revolutionary inverter technology minimizes energy loss improving the system's overall energy efficiency. Each indoor unit includes one remote control. This system bears an 18.4 SEER rating, a 10.3 EER rating, and an 8.7 HSPF rating. Ceiling cassette units feature a built-in condensate pump. Jet Cool operation allows rapid cooling of your rooms. A defrost control shuts down the indoor fan to prevent cold air from entering the house and removes frost from outdoor coils. Plasma air filtering reduces pollutant levels entering your home or business. Automatic operation and restart allows set levels of comfort set automatically and remembered after the system powers down. Ceiling cassette indoor units do not include PT-UQC grille.

Product Features:

Inverter
Inverter heat pumps use a variable speed compressor in place of standard constant speed compressors. Instead of shutting off at the set temperature, variable speed compressors continue to operate at low speed to maintain the desired temperature and save on energy costs.

Defrost/De-Icing
Defrost helps to remove frost from the outdoor coil during periods of low temperature.

Gold Fin
A corrosion resistant outdoor coil extends the service life of your outdoor unit.

Auto Operation
Temperature and fan speed set automatically within one of three comfort levels.

Auto Restart
Your system will automatically restart following a power failure.

Drain Pump
The drain pump drains away excess condensate fluid.

Jet Cool
This function allows a system to operate at high speed for 30 minutes to rapidly cool a room.

Product Includes:

• (1) LMU540HV Outdoor Condenser
• (3) LMCN185HV Indoor Units
• (3) Wired Controls

Product Notes:

To complete the Tri Zone Ceiling Cassette Heat Pump Mini Split System consider adding the following accessories that are required to complete every mini split system installation:

• Line Set - efficient double insulated tubing that transfers refrigerant between indoor and outdoor units
• Drain Tubing - a tube that drains condensate from the indoor unit to the drain system or outside
• Connecting Wire - provides power from an outdoor unit to the indoor units
• Disconnect Box & Electrical Whip Kit - provides power for an outdoor unit
• Condenser Plastic Pad (optional) - designed as a mounting base for an outdoor unit
• Wall Bracket (optional) - in case you need to wall mount an outdoor unit

By adding the required accessories to the Tri Zone Ceiling Cassette Heat Pump Mini Split System you are receiving a complete solution completely ready for installation, so your contractor does not need to purchase required LG accessories to finish the installation.
