Product Specifications
General Data |
| Type |
Concealed Duct System |
| Product Line |
Flex Multi |
| Operating Mode |
Heat Pump |
| Number of Zones |
4 |
| Multi-Zone Compatible |
Yes |
| Mount Type |
Concealed Duct |
Performance Data |
| Nominal Capacity (BTU) |
39,000 |
| Cooling Capacity (BTU) |
34,000 |
| Heating Capacity (BTU) |
41,000 |
| SEER (Seasonal Energy Efficiency Rating) |
16.5 |
| EER (Energy Efficiency Rating) |
12 |
| HSPF |
9.5 |
LG LMDN095HV Specifications |
General Data |
| Type |
Concealed Duct Unit |
| Product Line |
Flex Multi |
| Operating Mode |
Heat Pump |
| Multi-Zone Compatible |
Yes |
| Remote Control |
Wired |
| Mount Type |
Concealed Duct |
| Installation Location |
Indoor |
Performance Data |
| Cooling Capacity (BTU) |
9,000 |
| Heating Capacity (BTU) |
9,000 |
| Moisture Removal (Pints/Hour) |
2.1 |
| Minimum Air Flow (CFM) |
230 |
| Maximum Air Flow (CFM) |
300 |
| Maximum Sound Level (dB) |
33 |
| Minimum Sound Level (dB) |
25 |
Electrical Data |
| Voltage (Volts) |
208 |
| Phase |
1 |
| Frequency (Hertz) |
60 |
Dimensions |
| Liquid Connection Size (Inches) |
1/4 |
| Suction Connection Size (Inches) |
3/8 |
| Product Height (Inches) |
7 1/2 |
| Product Width (Inches) |
32 7/25 |
| Product Depth (Inches) |
22 33/50 |
| Product Weight (Pounds) |
45.2 |
| Shipping Weight (Pounds) |
50 |
Warranty |
| Parts Warranty (Years) |
2 |
Certifications |
| ETL Listed |
Yes |
| AHRI Certified |
Yes |
LG LMDN125HV Specifications |
General Data |
| Type |
Concealed Duct Unit |
| Product Line |
Flex Multi |
| Operating Mode |
Heat Pump |
| Multi-Zone Compatible |
Yes |
| Remote Control |
Wired |
| Mount Type |
Concealed Duct |
| Installation Location |
Indoor |
Performance Data |
| Cooling Capacity (BTU) |
12,000 |
| Heating Capacity (BTU) |
12,000 |
| Moisture Removal (Pints/Hour) |
2.5 |
| Minimum Air Flow (CFM) |
265 |
| Maximum Air Flow (CFM) |
335 |
| Maximum Sound Level (dB) |
33 |
| Minimum Sound Level (dB) |
26 |
Electrical Data |
| Voltage (Volts) |
208 |
| Phase |
1 |
| Frequency (Hertz) |
60 |
Dimensions |
| Liquid Connection Size (Inches) |
1/4 |
| Suction Connection Size (Inches) |
3/8 |
| Product Height (Inches) |
7 1/2 |
| Product Width (Inches) |
32 7/25 |
| Product Depth (Inches) |
22 33/50 |
| Product Weight (Pounds) |
45.2 |
| Shipping Weight (Pounds) |
50 |
Warranty |
| Parts Warranty (Years) |
2 |
Certifications |
| ETL Listed |
Yes |
| AHRI Certified |
Yes |
LG LMU369HV Specifications |
General Data |
| Type |
Outdoor Condenser |
| Product Line |
Flex Multi |
| Operating Mode |
Heat Pump |
| Maximum Number of Zones |
4 |
| Multi-Zone Compatible |
Yes |
| Installation Location |
Outdoor |
Performance Data |
| Cooling Capacity (BTU) |
34,000 |
| Heating Capacity (BTU) |
34,000 |
| Maximum Sound Level (dB) |
57 |
Electrical Data |
| Voltage (Volts) |
208 |
| Phase |
1 |
| Frequency (Hertz) |
60 |
Dimensions |
| Maximum Line Length (Feet) |
246 1/10 |
| Liquid Connection Size (Inches) |
1/4 |
| Suction Connection Size (Inches) |
3/8 |
| Product Height (Inches) |
45 7/8 |
| Product Width (Inches) |
35 11/25 |
| Product Depth (Inches) |
14 14/25 |
| Product Weight (Pounds) |
209.4 |
| Shipping Weight (Pounds) |
222.6 |
Warranty |
| Parts Warranty (Years) |
2 |
| Compressor Warranty (Years) |
5 |
Certifications |
| Energy Star Listed |
Yes |
| ETL Listed |
Yes |
| AHRI Certified |
Yes |
Product Overview

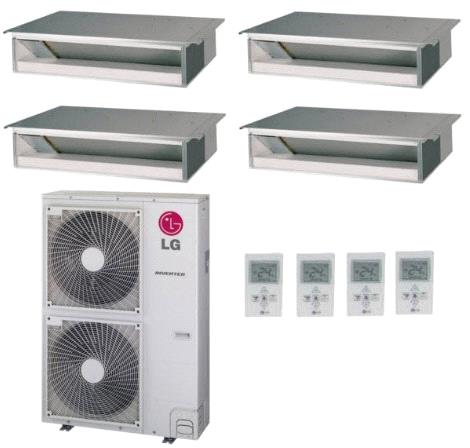

The LG Quad Zone Flex Multi Concealed Duct Heat Pump Mini Split System includes (1) LMU369HV 34,000 BTU Outdoor Condenser, (3) LMDN095HV 9,000 BTU Indoor Units, and (1) LMDN125HV 12,000 BTU Indoor Unit. This concealed duct system is designed for 4 zones and is rated at a capacity of 39,000 BTU/hour. It comes with a total of 4 concealed duct indoor units. Revolutionary inverter technology minimizes energy loss, improving the system's overall energy efficiency. Each indoor unit includes one remote control. This system bears a 16.5 SEER rating, an 12 EER rating, and an 9.5 HSPF rating.
Product Features
Inverter
Inverter heat pumps use a variable speed compressor in place of standard constant speed compressors. Instead of shutting off at the set temperature, variable speed compressors continue to operate at low speed to maintain the desired temperature and save on energy costs.
Defrost/De-Icing
Defrost helps to remove frost from the outdoor coil during periods of low temperature.
Gold Fin
A corrosion resistant outdoor coil extends the service life of your outdoor unit.
Auto Operation
Temperature and fan speed set automatically within one of three comfort levels.
Auto Restart
Your system will automatically restart following a power failure.
Drain Pump
The drain pump drains away excess condensate fluid.
Product Includes
- (1) LMU369HV Outdoor Condenser
- (3) LMDN095HV Indoor Units
- (1) LMDN125HV Indoor Unit
- (4) Wired Controllers
Product Notes
To complete the Quad Zone Flex Multi Concealed Duct Heat Pump Mini Split System, consider adding the following accessories that are required to complete every mini split system installation
- Line Set - efficient double insulated tubing that transfers refrigerant between indoor and outdoor units
- Drain Tubing - a tube that drains condensate from the indoor unit to the drain system or outside
- Connecting Wire - provides power from an outdoor unit to the indoor units
- Disconnect Box & Electrical Whip Kit - provides power for an outdoor unit
- Condenser Plastic Pad (optional) - designed as a mounting base for an outdoor unit
- Wall Bracket (optional) - in case you need to wall mount an outdoor unit
By adding the required accessories to the Quad Zone Flex Multi Concealed Duct Heat Pump Mini Split System you are receiving a complete solution completely ready for installation, so your contractor does not need to purchase additional LG accessories to finish the installation.
