Indoor Model H/P Inverter #

LMCN077HV

Ceiling Grill Model# (Sold Separately)

PT-UQC

Performance

Capacity*  (BTU/h)

7,000 Class

Fan Air Flow Rate (CMM)

7.5/6/5

                           (CFM)

265/212/177

Sound Level H/M/L (dB(A)+3)

31/27/24

Electrical

Running Current (A)

0.25

Power Supply (V/Hz/Ø/)

208-230/60/1

Piping Connections

Liquid (inches)

1/4

Gas (inches)

3/8

Temperature Sensor

Thermistor

Refrigerant

R410A

Power/Transmission Interunit Cable (No. x AWG)

4 x 18

Dimensions (WxHxD)

Body (inches)

22 7/16 x 8 7/16 x 22 7/16

Decorative Panel (inches)

27 9/16 x 7/8 x 27 9/16

Net Weight Body (lbs)

31

Net Weight Decorative Panel (lbs)

7

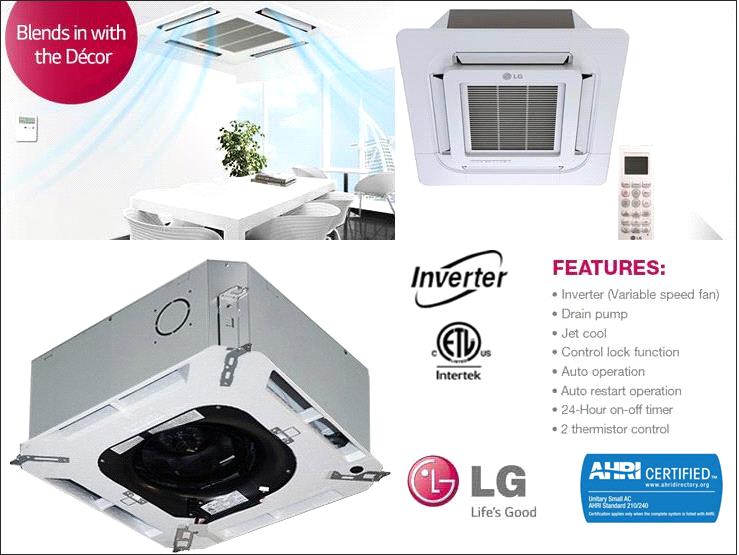

Features
• Inverter (variable speed fan)
• Drain pump
• Jet Cool
• Control lock function
• Auto operation (Artificial Intelligence)
• Auto restart operation
• 24-Hour on/off timer
• 2 thermistor control
• Plasma air purifying system

Interior Unit Includes:
• Ceiling unit
• Wireless LCD remote control, batteries, Wireless LCD remote control, batteries, holder & holder hardware
• Owner’s manual

• Accessory
  - Model name : PT-UQC
    (Ceiling grill sold separately)
  - Model name : PTPKQ0
    (Plasma kit sold separately)
ETL# : 3091879

Note :
1. Capacities are based on the following conditions:
      Cooling:   - Indoor Temperature 80ºF (26.7ºC ) DB/67ºF (19.4ºC) WB
- Outdoor Temperature 95ºF (35ºC) DB/75ºF (23.9ºC) WB
       Heating:  - Indoor Temperature 70ºF (21.1ºC) DB/60ºF (15.6ºC) WB
- Outdoor Temperature 47ºF (8.3ºC) DB/43ºF (6.1ºC) WB
       Piping Length:  - Interconnecting Piping Length 24.6 ft.(7.5m)
- Level Difference of Zero

2. Wiring cable size must comply with the applicable local and national code.
3. The specification may be subject to change without prior notice for purpose of improvement.
4. For more capacity(*) information, refer to the combination tables.
