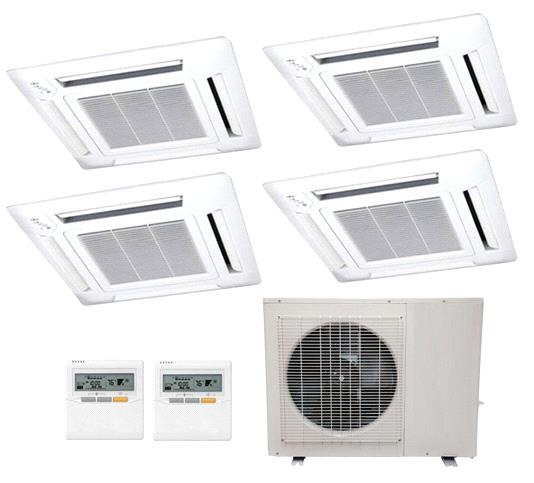

| PRODUCT SPECIFICATIONS FOR AOU48RLXFZ1:
Fujitsu AOU48RLXFZ Outdoor Unit Specifications: |
|
| Rated Cooling Capacity (BTU): |
48,000 |
| Max Cooling Capacity (BTU): |
51,100 |
| Rated Heating Capacity (BTU): |
54,000 |
| Max Heating Capacity (BTU): |
57,000 |
| Power Voltage: |
208/230v-1Ph-60Hz |
| Cooling Current (A): |
23.4 |
| Heating Current (A): |
21.4 |
| EER: |
9.25 |
| SEER: |
17.0 |
| COP: |
3.23 |
| HSPF: |
9.8 |
| Cooling Airflow (CFM): |
2,737 |
| Heating Airflow (CFM): |
2,825 |
| Cooling Sound Level (dB): |
56 |
| Heating Sound Level (dB): |
58 |
| Refrigerant Type: |
R410A |
| Refrigerant Charge: |
7.6 lbs |
| Fujitsu AOU48RLXFZ Outdoor Unit Dimensions: |
|
| Enclosure Material: |
Painted galvanized steel |
| Enclosure Color: |
Beige |
| Dimensions HxWxD (Inches): |
36 x 38-1/4 x 14 5/8 |
| Weight (lbs): |
216 |
| Fujitsu AOU48RLXFZ Outdoor Unit Connections: |
|
| Liquid Size: |
3/8 |
| Gas Size: |
5/8 |
| Max Total Length (ft): |
377 |
| Max Individual Unit Length (ft): |
49 |
| Max Vertical Distance Between Outdoor and Indoor Units (ft): |
98 |
| Max Vertical Distance Between Indoor Units (ft): |
49 |
PRODUCT SPECIFICATIONS FOR AUU9RLF:
| Configuration: |
Ceiling Recessed Cassette |
| Connection Method: |
Flared |
| Drain Pipe Size: |
5/8" |
| Electrical: |
208 / 230 V. 1 Phase 60 Hz |
| Energy Source: |
Electric |
| Inverter: |
Yes |
| Liquid Line: |
1/4" |
| Low Ambient Operation: |
Yes |
| Nominal Capacity: |
0.75 Ton |
| Product Depth: |
22 7/16" |
| Product Height: |
9 11/16" |
| Product Length: |
22 7/16" |
| Product Ship Weight: |
33 lbs. |
| Refrigerant: |
R410A |
| Remote Control: |
Yes |
| Suction Line: |
3/8" |
| Unit Type: |
Indoor |
| UPC: |
AUU9RLF |
| Warranty Terms - Compressor: |
Not Applicable |
| Warranty Terms - Parts: |
5 Years |
PRODUCT SPECIFICATIONS FOR AUU12RLF:
| Configuration: |
Ceiling Recessed Cassette |
| Connection Method: |
Flared |
| Drain Pipe Size: |
5/8" |
| Electrical: |
208 / 230 V. 1 Phase 60 Hz |
| Energy Source: |
Electric |
| Inverter: |
Yes |
| Liquid Line: |
1/4" |
| Low Ambient Operation: |
Yes |
| Nominal Capacity: |
1 Ton |
| Product Depth: |
22 7/16" |
| Product Height: |
9 11/16" |
| Product Length: |
22 7/16" |
| Product Ship Weight: |
33 lbs. |
| Refrigerant: |
R410A |
| Remote Control: |
Yes |
| Suction Line: |
3/8" |
| Unit Type: |
Indoor |
| UPC: |
AUU12RLF |
| Warranty Terms - Compressor: |
Not Applicable |
| Warranty Terms - Parts: |
5 Years |
PRODUCT SPECIFICATIONS FOR AUU18LF:
| Configuration: |
Ceiling Recessed Cassette |
| Connection Method: |
Flared |
| Drain Pipe Size: |
5/8" |
| Electrical: |
208 / 230 V. 1 Phase 60 Hz |
| Energy Source: |
Electric |
| Inverter: |
Yes |
| Liquid Line: |
1/4" |
| Low Ambient Operation: |
Yes |
| Nominal Capacity: |
1.5 Ton |
| Product Depth: |
22 7/16" |
| Product Height: |
9 11/16" |
| Product Length: |
22 7/16" |
| Product Ship Weight: |
33 lbs. |
| Refrigerant: |
R410A |
| Remote Control: |
Yes |
| Suction Line: |
1/2" |
| Unit Type: |
Indoor |
| UPC: |
AUU18RLF |
| Warranty Terms - Compressor: |
7 Years |
| Warranty Terms - Parts: |
5 Years |
